PRODUCTS | RETROFIT KITS | ML-GS

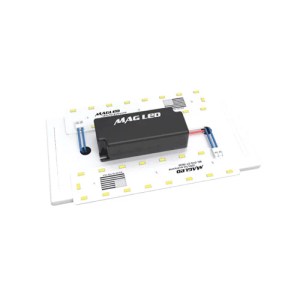

Replace and Save! Reduce your energy usage and increase your light output in minutes. Mag-LED’s Glow Stick retrofit kit allows for easy conversion of outdated fixtures to energy-efficient LEDs. Each kit comes with 2 light modules and a matched power supply. Each Glow Stick Retrofit Kit also comes with a set of rare earth magnets attached to the backside as well as a set of lever nuts to assist in installation. Our LED modules produce over 125 lumens per watt. Compared to traditional fluorescent lighting, the Glow Stick consumes 40% less power while delivering 30% more light.

INPUT
VOLTAGE

TO 277 VAC

LUMEN
OUTPUT

LUMENs (40W - 4000K)

LUMENS
PER WATT

LUMENS/WATT

%

Less Power Consumed!

%

More Light!

%

Can take up to 30% off on your total Electric Bill!

DOWNLOAD PRODUCT FILES:

PDF
IES
CAD

EASY INSTALLATION

f

UPGRADE EXISTING FIXTURES TO ENERGY EFFICIENT LEDS

CONSUMES 40% LESS POWER

PRODUCES 30% MORE LIGHT

SAVES UP TO 30% ON TOTAL LIGHTING COSTS

MODEL: ML-GS
LED TYPE
2835 LED
WATTAGE
20 Watts
LUMEN OUTPUT
2,300Lm (@4000K)
INPUT VOLTAGE
120~277VAC
COLOR TEMPERATURE
•2700-3000K – WW
•4000K – NW
•5000K – CW
PROTECTION GRADE IP52
CRI
•80+
MODEL: ML-GS
LED TYPE
2835 LED
WATTAGE
40 Watts
LUMEN OUTPUT
5,600Lm (@4000K)
INPUT VOLTAGE
120~277VAC
COLOR TEMPERATURE
•2700-3000K – WW
•4000K – NW
•5000K – CW
PROTECTION GRADE IP52
CRI
•80+
MODEL: ML-GS
LED TYPE 2835 LED
WATTAGE 20 Watts
LUMEN
OUTPUT
2,300Lm
(@4000K)
INPUT
VOLTAGE
120~277VAC
COLOR
TEMPERATURE
•2700K-3000K
(WW)
•4000K
(NW)
•5000K
(CW)
PROTECTION
GRADE
IP52
CRI 80+



MODEL: ML-GS
LED TYPE 2835 LED
WATTAGE 40 Watts
LUMEN
OUTPUT
5,600Lm
(@4000K)
INPUT
VOLTAGE
120~277VAC
COLOR
TEMPERATURE
•2700K-3000K
(WW)
•4000K
(NW)
•5000K
(CW)
PROTECTION
GRADE
IP52
CRI 80+

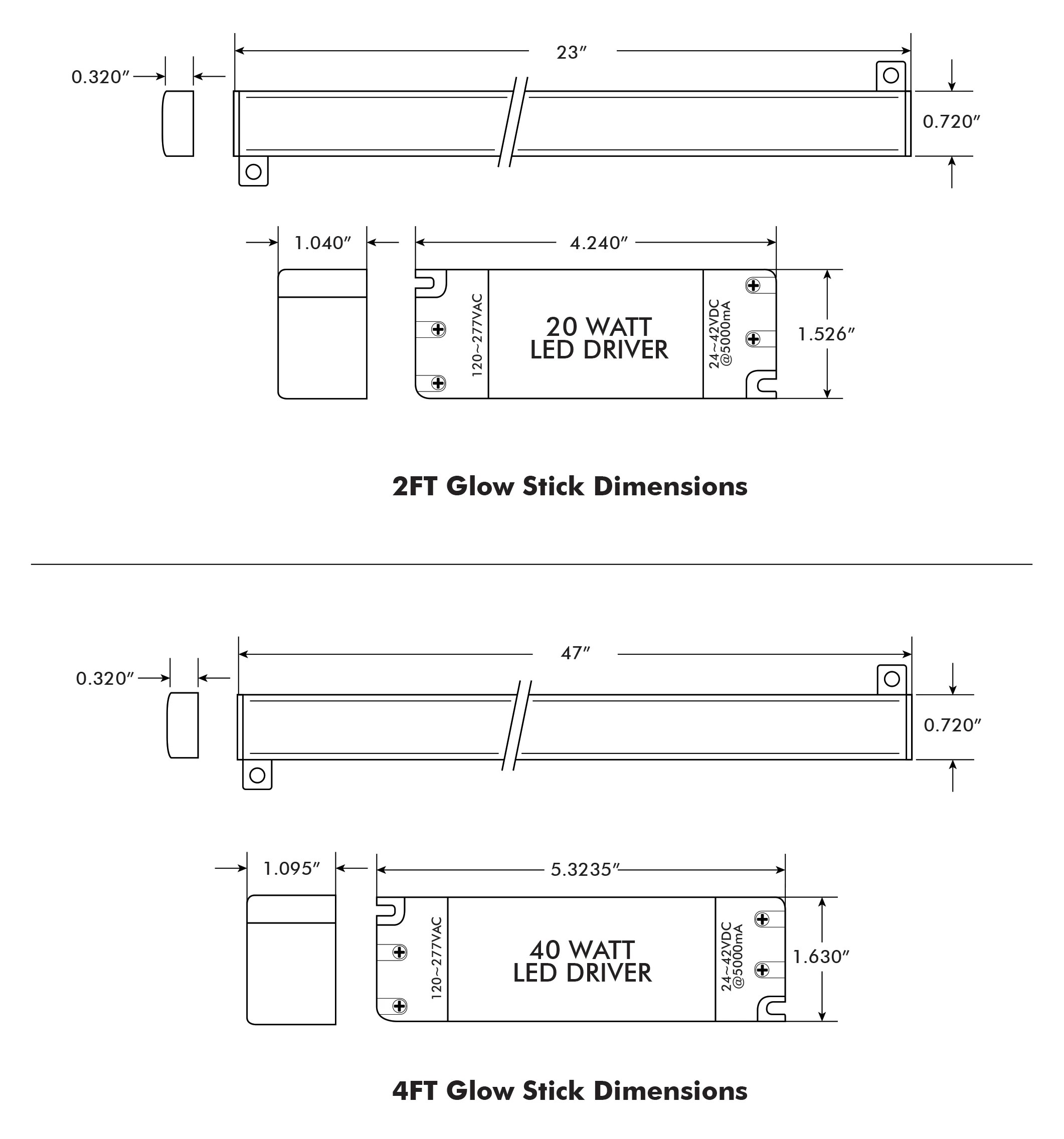

DIMENSIONS:
