PRODUCTS | DC MODULES | ML005070026

BATTERY BACKUP-0026

Mag-LED’s Battery Backup-0026 Module is part of our line of DC Modules that are revolutionizing the lighting industry as we know it. Utilizing metal-core PCB (Printed Circuit Board) technology, Mag-LED DC Modules provide unparalleled lumen output with exceptionally low power consumption.

Available in a variety of color temperatures (CCT) and CRI configurations- Mag-LED DC Modules are made to order! Simply state your CCT/CRI specifications and we’ll create a module to perfectly suit your needs. Contact us for a free quote and make the switch today!

INPUT
VOLTAGE

VDC

LUMEN
OUTPUT

LUMENS (AT 14W-CW)

LUMENS
PER WATT

LUMENS/WATT

DOWNLOAD PRODUCT FILES:

PDF
IES
CAD

EASY INSTALLATION

f

CONNECT DIRECTLY TO DC, NO EXTERNAL POWER NEEDED

50,000 Hour Lifespan

s

UL CERTIFIED - E342490

MODEL: ML-005-07-0026
LED TYPE
3030 6.2V LED
WATTAGE
7 Watts
LUMEN OUTPUT
•915Lm
(WW)
•930Lm
(NW)
•945Lm
(CW)
PCB TYPE
Metal Core PCB
INPUT VOLTAGE
31VDC
COLOR TEMPERATURE
•2700-3000K
(WW)
•4000K
(NW)
•5000K
(CW)
CRI 80+, 90+



MODEL: ML-005-07-0026
LED TYPE
3030 6.2V LED
WATTAGE
14 Watts
LUMEN OUTPUT
•1,830Lm
(WW)
•1,860Lm
(NW)
•1,890Lm
(CW)
PCB TYPE
Metal Core PCB
INPUT VOLTAGE
31VDC
COLOR TEMPERATURE
•2700-3000K (WW)
•4000K
(NW)
•5000K
(CW)
CRI 80+, 90+



MODEL: ML-005-07-0026
LED
TYPE
3030 6.2V LED
WATTAGE
7 Watts
LUMEN
OUTPUT
•915Lm
(WW)
•930Lm
(NW)
•945Lm
(CW)
PCB
TYPE
Metal Core PCB
INPUT
VOLTAGE
31VDC
COLOR TEMPERATURE
•3000K
(WW)
•4000K
(NW)
•5000K
(CW)
CRI 80+, 90+



MODEL: ML-005-07-0026
LED
TYPE
3030 6.2V LED
WATTAGE
7 Watts
LUMEN
OUTPUT
•1,830Lm
(WW)
•1,860Lm
(NW)
•1,890Lm
(CW)
PCB
TYPE
Metal Core PCB
INPUT
VOLTAGE
31VDC
COLOR TEMPERATURE
•3000K
(WW)
•4000K
(NW)
•5000K
(CW)
CRI 80+, 90+

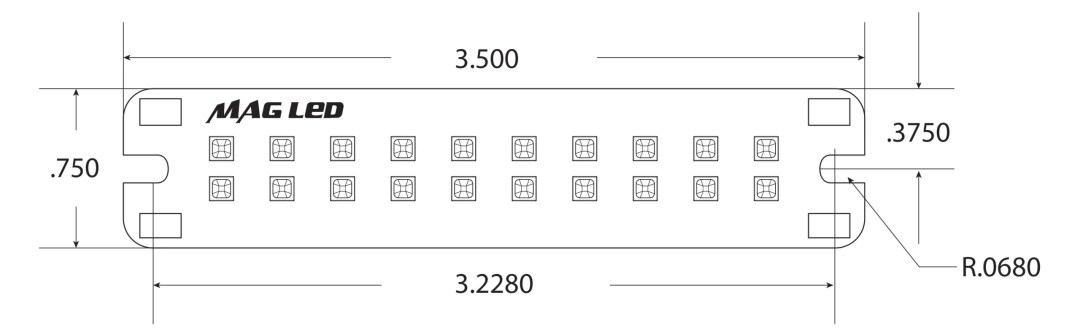

DIMENSIONS:
