PRODUCTS | DC MODULES | ML005070010A

12 LED 5630 MODULE

Mag-LED’s DC Modules are revolutionizing the lighting industry as we know it. Utilizing metal-core PCB (Printed Circuit Board) technology, Mag-LED DC Modules provide unparalleled lumen output with exceptionally low power consumption.

Our DC Modules are easy to install and plug directly into DC without the need for an external driver. Each Module will provide flicker-free lighting for the entirety of their impressive 50,000 Hour lifespan. Ideal applications include Back Lighting, Display Case Lighting, Post Top Lighting, or Wall Sconces.

Available in a variety of color temperatures (CCT) and CRI configurations- Mag-LED DC Modules are made to order! Simply state your CCT/CRI specifications and we’ll create a module to perfectly suit your needs. Contact us for a free quote and make the switch today!

INPUT
VOLTAGE

VDC

LUMEN
OUTPUT

LUMENS (CW)

LUMENS
PER WATT

LUMENS/WATT

INPUT
VOLTAGE

VDC

LUMEN
OUTPUT

LUMENS (CW)

LUMENS
PER WATT

LUMENS/WATT

INPUT
VOLTAGE

VDC

LUMEN
OUTPUT

LUMENS (CW)

LUMENS
PER WATT

LUMENS/WATT

DOWNLOAD PRODUCT FILES:

PDF | IES | CAD

EASY INSTALLATION

f

CONNECT DIRECTLY TO DC, NO EXTERNAL POWER NEEDED

50,000 Hour Lifespan

s

UL CERTIFIED - E342490

MODEL: ML-005-07-0010A
LED TYPE
5630 LED
WATTAGE
4 Watts
LUMEN OUTPUT
•455Lm (Warm White)
•495Lm (Neutral White)
•505Lm (Cool White)
PCB TYPE
Metal Core PCB
INPUT VOLTAGE
24VDC
COLOR TEMPERATURE
•2700-3000K (Warm White)
•4000K (Neutral White)
•5000K (Cool White)
CRI 80+, 90+
MODEL: ML-005-07-0010A
LED 5630 LED
WATTAGE
4 Watts
LUMEN OUTPUT
•455Lm (WW)
•495Lm (NW)
•505Lm (CW)
PCB TYPE
Metal Core PCB
INPUT VOLTAGE
24VDC
COLOR TEMPERATURE
•2700-3000K (WW)
•4000K (NW)
•5000K (CW)
CRI 80+, 90+

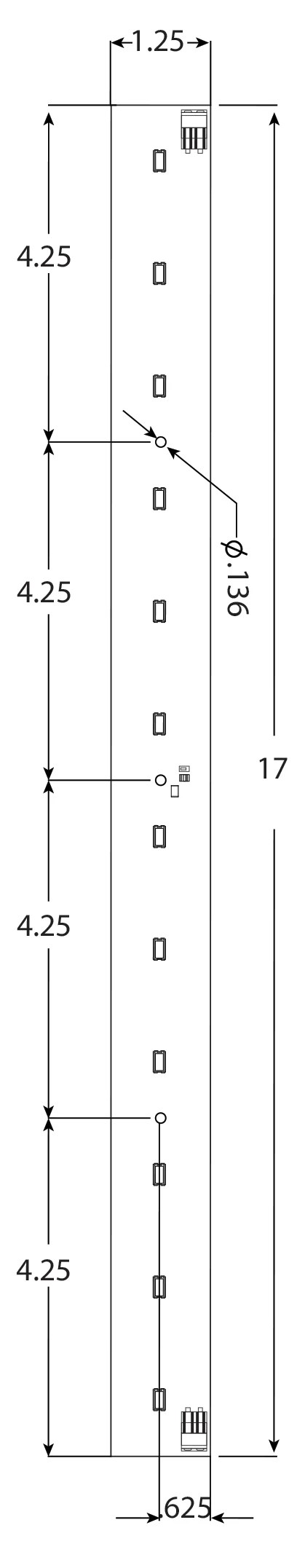

DIMENSIONS:

DIMENSIONS
