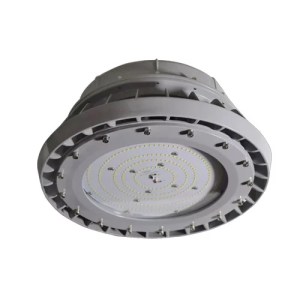

A Series Explosion Pod
The Mag LED Explosion Proof A Pod is a C1D2 rated fixture; certified for use in all types of hazardous applications such as mining, pumping stations, military, and other high humidity, vapor, dust, particle, and high-temperature locations. The A Series has an input voltage of 100~277VAC and comes in 3 different wattage options: 100W(14,000Lm), 150W(21,000Lm) and 200W(28,000Lm). Available in 4000K or 5000K.
INPUT
VOLTAGE
VAC
LUMEN
OUTPUT
LUMENS (200W)
DOWNLOAD PRODUCT FILES:
Fixture constructed of extruded corrosion resistant copper-free aluminum alloy
LIFESPAN: 50,000 Hrs
Aluminum die-cast heat sinks used to prevent overheating
Easy Installation
Low Operating Cost | Low Maintenance
| MODEL: | ML-EXPLODA-100 |
| VOLTAGE | 100~277 VAC |
| WATTAGE | 100 Watts |
| LUMENS | 14,000Lm |
| LUMENS PER WATT | 140Lm/W |
| COLOR TEMPERATURE | •4000K – NW •5000K – CW |
| BEAM ANGLE | •40° •60° •80° •120° |
| ENVIRONMENT | Outdoor |
| PROTECTION GRADE | IP66 |
| RATING | Class I, Div. 2; Class I, Div. 1&2; Class III; Zone 2; Zone 21; Zone 22 |
| COMPLIANCE | ETL/cETL/UL1598/ UL844/IECX/ATEX/ABS |
| CRI | 80+ |
| MODEL: | ML-EXPLODA-150 |
| VOLTAGE | 100~277 VAC |
| WATTAGE | 150 Watts |
| LUMENS | 21,000Lm |
| LUMENS PER WATT | 140Lm/W |
| COLOR TEMPERATURE | •4000K – Neutral White •5000K – Cool White |
| BEAM ANGLE | •40° •60° •80° •120° |
| ENVIRONMENT | Outdoor |
| PROTECTION GRADE | IP66 |
| RATING | Class I, Div. 2; Class I, Div. 1&2; Class III; Zone 2; Zone 21; Zone 22 |
| COMPLIANCE | ETL/cETL/UL1598/ UL844/IECX/ATEX/ABS |
| CRI | 80+ |
| MODEL: | ML-EXPLODA-200 |
| VOLTAGE | 100~277 VAC |
| WATTAGE | 200 Watts |
| LUMENS | 28,000Lm |
| LUMENS PER WATT | 140Lm/W |
| COLOR TEMPERATURE | •4000K – NW •5000K – CW |
| BEAM ANGLE | •40° •60° •80° •120° |
| ENVIRONMENT | Outdoor |
| PROTECTION GRADE | IP66 |
| RATING | Class I, Div. 2; Class I, Div. 1&2; Class III; Zone 2; Zone 21; Zone 22 |
| COMPLIANCE | ETL/cETL/UL1598/ UL844/IECX/ATEX/ABS |
| CRI | 80+ |
| MODEL: | ML-EXPLODA-100 |
| VOLTAGE | 100~277 VAC |
| WATTAGE | 100 Watts |
| LUMEN OUTPUT | 14,000Lm |
| LUMENS PER WATT | 140Lm/W |
| COLOR TEMPERATURE | •4000K (NW) •5000K (CW) |
| BEAM ANGLE | •40° •60° •80° •120° |
| ENVIRONMENT | Outdoor |
| PROTECTION GRADE | IP66 |
| RATING | Class I, Div. 2; Class I, Div. 1&2; Class III; Zone 2; Zone 21; Zone 22 |
| COMPLIANCE | ETL/cETL/UL1598/ UL844/IECX/ATEX/ABS |
| CRI | 80+ |
| MODEL: | ML-EXPLODA-150 |
| VOLTAGE | 100~277 VAC |
| WATTAGE | 150 Watts |
| LUMEN OUTPUT | 21,000Lm |
| LUMENS PER WATT | 140Lm/W |
| COLOR TEMPERATURE | •4000K (NW) •5000K (CW) |
| BEAM ANGLE | •40° •60° •80° •120° |
| ENVIRONMENT | Outdoor |
| PROTECTION GRADE | IP66 |
| RATING | Class I, Div. 2; Class I, Div. 1&2; Class III; Zone 2; Zone 21; Zone 22 |
| COMPLIANCE | ETL/cETL/UL1598/ UL844/IECX/ATEX/ABS |
| CRI | 80+ |
| MODEL: | ML-EXPLODA-200 |
| VOLTAGE | 100~277 VAC |
| WATTAGE | 200 Watts |
| LUMEN OUTPUT | 28,000Lm |
| LUMENS PER WATT | 140Lm/W |
| COLOR TEMPERATURE | •4000K (NW) •5000K (CW) |
| BEAM ANGLE | •40° •60° •80° •120° |
| ENVIRONMENT | Outdoor |
| PROTECTION GRADE | IP66 |
| RATING | Class I, Div. 2; Class I, Div. 1&2; Class III; Zone 2; Zone 21; Zone 22 |
| COMPLIANCE | ETL/cETL/UL1598/ UL844/IECX/ATEX/ABS |
| CRI | 80+ |
DIMENSIONS:
MOUNTING:
